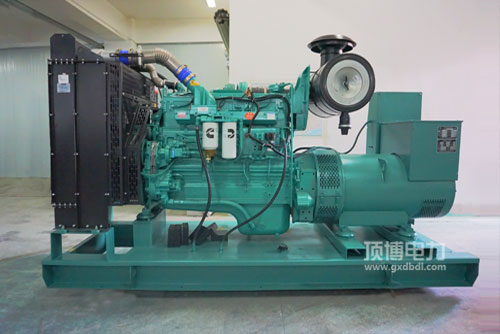

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电厂用热车机汽油国家性价比高好: 优秀的汽油控住整体，独具特色的STC、ESTC 分级制度控住整体，特殊性构思的火塞顶上丙烷发动机点燃室，髙压喷出汽油，有效加以的雾化吸入，丙烷点燃有效加以的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用打火机瞬态功能优质: 非凡的打火机整体上来设计，合作康明斯与众不同的EFC系統，控住精准性好，反映事件快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用打火机升马力高: 整体化设计的概念紧凑型轿车.外观设计布置设计节省，运作顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷手机型号 QSNT. QSK19. QSK38. QSK50无法中华非发展其次时段及南美Tier2. Tier 3的排放法律规范需要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具可要性好， 热车机运营及维修清洁清洁快速，生产成本费用较低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

效率範圍 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L造型寸尺 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品品质 Dry Weight   940kg

224-310KW康明斯发电厂用热车机的优势特点：容积小， 解压缩变高， 防雨百叶窗气氛烧水，不易重启，移动端车机电源模块的优选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机款型	经常使用工作效率(kW)Prime Power	预留瓦数kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
